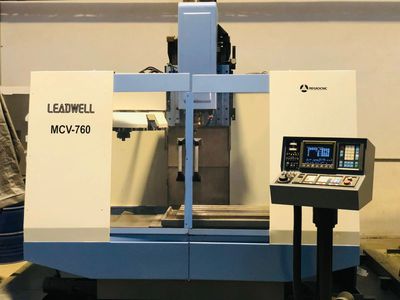

Venta de Centro de Maquinado Leadwell MCV-760 BT40

Centro de Maquinado

Marca: Leadwell

Modelo: MCV-760

Ver video de la máquina (Haz click)

  https://youtu.be/g9kdVNQcMP8

Features:

• Fanuc O-M CNC Control

• 24 Tools Tool Changer

• High precision 6000 RPM Spindle

• Powerful 20 hp high torque spindle motor

• Manual Pulse Generator

• Spindle Orientation

• Rigid Tapping

• Fast Rapid Traverse Rate

Specifications:

Year: 1996

Travels: X-Axis: 30″ Y-Axis: 20″ Z-Axis: 22″

Spindle Nose to Table (Min.- Max.): 4.9″ – 26″

Table Load Capacity: 1500 lbs

Table: Length: 39″

Width: 19″

Taper Size: BT40

Speed Range: 60 – 6000 RPM

Spindle Power: 20 HP

Feed rates: Rapid X,Y & Z: 945 inch/P.M

Cutting Feedrate: 315″ inch/ P.M

Automatic Tool Changer: 40 Taper

Capacity: 24

Max Tool Weight: 17.6 lbs

Max Tool Length: 11.8″

Max Tool Dia.: 5.90″

Tool Change Time: 1.5 Second

General: Air Required: 80 psi, 4 scfm

Power: 205-220v / 66FLA / 3-Phase

Overall Dimensions: 130″ x 104″ x 110″

High Weight: 12,000 lb
